| Ωριαία ταχύτητα: | 1800 σ.α.λ | Ονομαστική ισχύς: | 1375kVA/1100kW |
|---|---|---|---|
| Μοντέλο κινητήρα: | 12M33D1320E201 | Διάταξη κυλίνδρων: | 12κύλινδρος, τύπου V |
| Ελεγκτής: | Smargen HGM9510N | Κατανάλωση Καυσίμου: | 198 g/kw.h |
| γραμμές: | 12 Γραμμές | Αναλογία Συμπίεσης: | 15:1 |
| Επισημαίνω: | 1100KW Σετ Γεννήτριας Ντίζελ Weichai,Γεννήτρια 3 φάσεων ανοιχτού τύπου 60Hz,Γεννήτρια Weichai με εναλλάκτη Wattek |
||

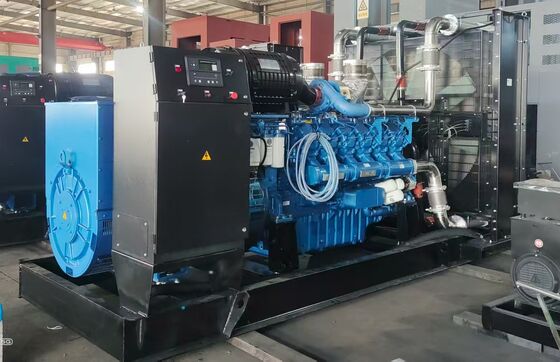

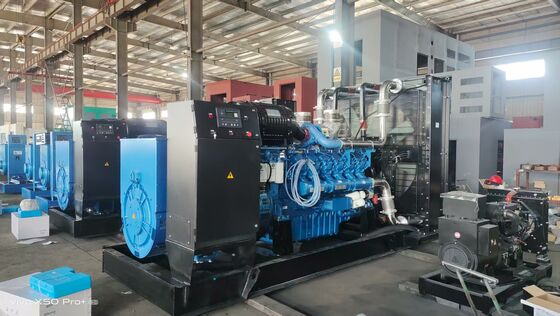

1100KW Weichai Diesel Generator Set
60Hz Open Type 3 phase with Wattek alternator
This is a 1100kW Weichai diesel generator set, 60Hz, 3-phase 12-lead alternator from Wattek. The 12-lead design allows reconnection
for different rated voltages to meet various project requirements.
| Generator set | Model No. | SW1375E6 |
| Standby power | 1500KVA/1200KW | |
| Rated power | 1375KVA/1100KW | |
| Output voltage | 400V/230V | |
| Frequency | 60 Hz | |
| Noise level(7m) | 80dB (silent type) | |
| Power factor | COSΦ=0.8 | |
| Phase/wires | 3 phase 4 wires | |
| Start mode | Electric | |
| Fuel consumption |
282 L/h (100% load) 196 L/h (70% load) |
|
| Max current(amps) | 2165 | |
| Protection |
Low oil-pressure, High water temperature, Over-speed, Over-current. |
|
| Engine | Brand | Weichai Baudouin |
| Model | 12M33D1320E201 | |
| Engine speed: | 1800 rpm | |
| Cylinders layout | 12 cylinder,V type | |
| Fuel | 0# light diesel | |
| Fuel consumption | 198g/kw.h | |
| Oil Capacity (low/high) | 117/155 L | |
| Compression Ratio: | 15:1 | |
|
Engine Power (prime/standby) |
1200KW/1320KW | |
| Aspiration | Turbocharged-Aftercooled | |
| Governor/Class | Electronic | |
| Bore and stroke | 150×185 mm | |
| Start mode | DC24V electric start | |
| Displacement | 39.2L | |
| Alternator | Brand | Leroy Somer |
| Model | LSA 50.2 M6 | |
| Insulation class | H | |
| Protection | IP23 | |
| Frequency fluctuation | ≤±0.5 % | |
| Voltage distortion | <4% | |
| lines | 12 | |
| Output (Cont./Standby) | 1450KVA/1520KVA | |
| Frequency | 60 Hz | |
| Rated voltage | 400V/3 phase | |
| Frequency regulation | ≤±0.5 %(stable) | |
| Voltage control | AVR |
| Technical parameters of Control Panel: | ||||
| Brand | UK Deepsea | Model | DSE 8610 | |
| Function: | ||||
|
• Start or Stop Generator set manually / automatically • Open controller output can be defined as Pre-heat/Idle output • High Coolant temperature protection • Low Oil pressure protection • Over load protection • Generator over/under frequency protection • Generator over/under/unbalance voltage Protection • Over speed protection • AMF • Automatic synchronization |
||||
| Note:Indicate this function depend on the set points of the controller in field. | ||||
| Optional accessories | |
| Engine | • Heater • Battery Charger |
| Alternator | • Permanent Magnet Generator(PMG) |
| Control system | • Remote Control Panel • Auto Transfer Switch (ATS) • Paralleling System |
| Fuel system | • Daily Fuel Tank • Water Separator • Fuel Level Sensor |
| Others | • Spring isolator • Soundproof Type • Trailer Type • Extra spare Parts |
| Standard Accessories | Open type | Silent type |
| Sound-proof & Weather-proof Canopy | N/A | √ |
| Daily base fuel tank. 8 hours capacity | N/A | N/A |
| Bottom lifting eyes | √ | √ |
| Single-bearing generator again drops | √ | √ |
| digital type control panel | √ | √ |
| Speed governor | √ | √ |
| Electric start and 12v charger | √ | √ |
| Standard air filter, oil filter, fuel filter | √ | √ |
| Air circuit breaker cabinet (2500A/3P) | √ | √ |
| Radiator | √ | √ |
| High-efficient muffler | √ | √ |
| Exhaust elbow&flexible pipe | √ | √ |
| Storage battery | √ | √ |
| Steel base-frame against vibration | √ | √ |
| Soft pipe for fuel and handle for lube going-out | √ | √ |
| Operation& Maintenance manual. | √ | √ |
| Drawing | Dimension |
|
Open type: 4450*1780*2500 mm 7,000 kg |
|
|
Slient type: 6060*2440*2730 mm 11,800 kg |
Remark:
Prime Power (PRP): Prime power is available for an unlimited number of annual hours
in variable load application, in accordance with GB/T2820-97(EQV ISO8528);
a 10% overload capability is available for a period of 1 hour within a 12-hour period of operation.
Standby Power Rating (ESP): The standby power rating is applicable for supplying
emergency power for the duration of a utility power interruption. No overload, utility parallel
or negotiated outage operation capability is available at this rating.
Warranty:Stone Power provides a full line of brand new and high quality products. Each
Genset is strictly factory tested before delivery.
We offer client complete genset warranty of one year or 2,000 running hours warranty which comes firstly.
Weichai Baudouin engine enjoy 2 years or 2,000 running hours warranty offered by Weichai Baudouin
global after service network.
Leroy Somer alternator enjoy one year unlimted wroldwise warranty offered by Leroy Somer
global after service network.
Quick after service and parts are available from Stone Power or distributors in your location.
